Cast-in Device FCID Plus
Fast and efficient solution for forming service penetrations through concrete floors
Applications
- Sealing and firestopping PVC and HDPE pipes up to 6˝ (150 mm)
- Forms holes up to 8˝ (200mm) thick concrete floors. In combination with extension pieces up to additional 4“ (100mm) possible.
- FCID Plus creates recesses in slabs for lower positioning of soil
- Manifold units in wet room applications
Advantages
- Quick installation
- Watertight seal
- Higher tolerance
- Easily extendable
- Wider base for further connections
- No further collars or wraps required
- Reduce working at heights
- Cost saving
- Reduced foot plate
- Eco-friendly extension tube
- Closer proximity positioning
- Free of asbestos, solvents and any hazardous ingredien
Get a Quote
Need more help?
8856000000
Building materials

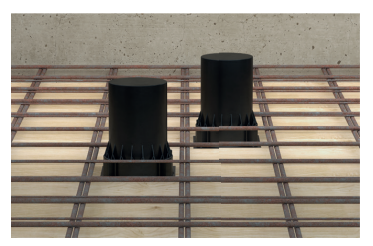

How it works
Functioning

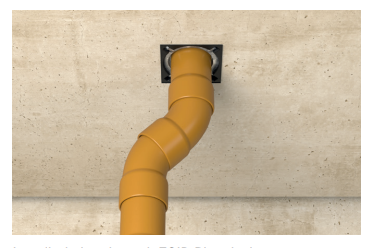

FCID Plus is a pass through system, which is constructed from a highly resilient polypropylene material and contains a powerful intumescent graphite band.
The FCID Plus is rugged enough to with stand the force and load of a concrete pour, yet lightweight enough to permit easy placement and handling.
TECHNICAL DATA
Item no. | Fits pipe-Ø [mm] | Height H H [mm] | Sales unit [pcs] | |
Item | ||||
FCiD Plus 50 | 566285 | 50/2“ | 200/8“ | 12 |
FCiD Plus 75 | 566286 | 75/3“ | 200/8“ | 12 |
FCiD Plus 100 | 566287 | 100/4“ | 200/8“ | 12 |
FICD Plus 150 | 566288 | 150/6“ | 200/8“ | 6 |
FCiD Plus 50 extension | 566289 | 50/2“ | 100/4“ | 6 |
FCiD Plus 75 extension | 566290 | 75/3“ | 100/4“ | 6 |
FCiD Plus 100 extension | 566291 | 100/4“ | 100/4“ | 6 |
FCiD Plus 150 extension | 566292 | 150/6“ | 100/4“ | 6 |
FCiD Plus 50 Deck adapter | 566293 | 50/2“ | – | 6 |
FCiD Plus 75 Deck adapter | 566294 | 75/3“ | – | 6 |
FCiD Plus 100 Deck adapter | 566295 | 100/4“ | – | 6 |
FCiD Plus 150 Deck adapter | 566296 | 150/6“ | – | 6 |
TECHNICAL DATA
State | solid |
Odour | odourless |
Shell material | Polyethylene |
Fire resistance | up to 4 hours – BS 476: Part 20 and AS 1530: Part 4 |
Extension or reduction in height possible | Yes |
Standard flange width | min 154 mm and max 254 mm |
Significant expansion occurs at temperature | > 190 °C |
Shelf life | N/a month |
Colour | black |
