Fire Collar FFC
Collar for sealing a wide range of combustible pipes where passing through fire rated walls and floors
Applications
- Non-metallic pipes like PVC, HDPE, MDPE, ABS of various sizes through fire rated walls and floor assemblies
Advantages
- Easy retrofit at any time
- Water resistant
- Pre-fixed attachment lugs
- Fold back tag for secure fixture around pipe
Get a Quote
Need more help?
8856000000
Building materials
How it works
Functioning

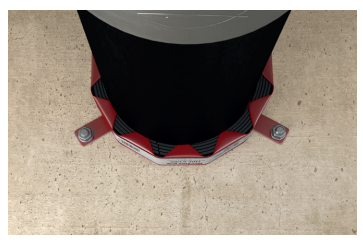

FFC is a powder coated cylindrical steel sleeve, which contains a heat reactive graphite-based intumescent material that expands during fire.
Designed to be securely fitted around the pipe and held in position with a retaining bolt.

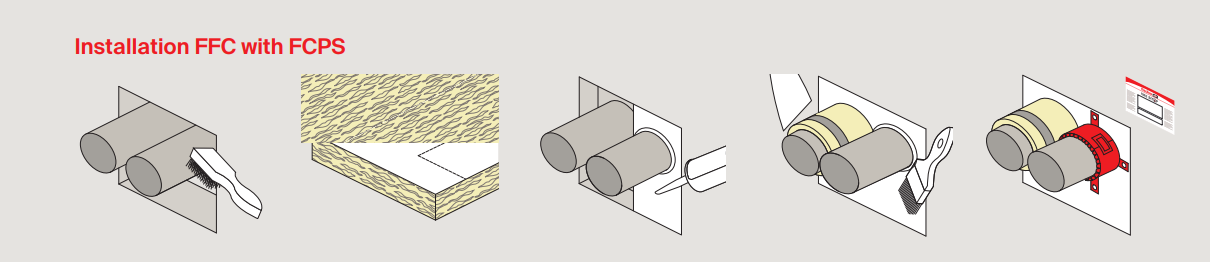

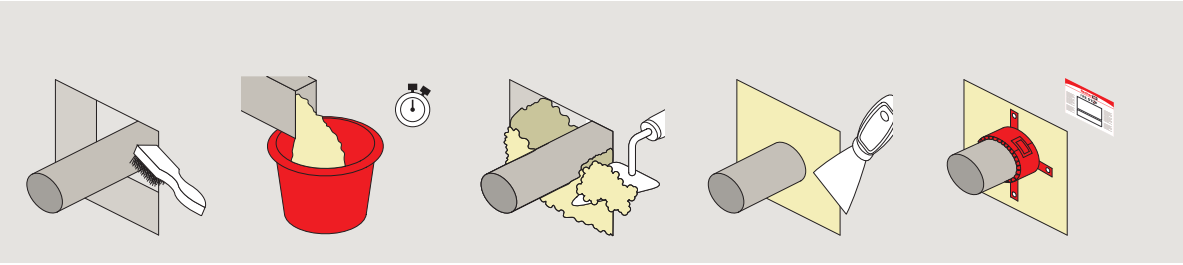

Any gaps up to 10 mm around FFC should be backfilled with FiAM or larger annular space should be closed with FCPS or FFSC.
TECHNICAL DATA
Item no. | Ap- pro- val ETA | Fits pipe-Ø [mm] | Sales unit [pcs] | |
Item | ||||
FFC 2/30-32 | 052456 | ● | 30 – 250 | 1 |
FFC 2/38-40 | 052480 | ● | 38 – 40 | 1 |
FFC 2/55 | 052481 | ● | 55 | 1 |
FFC 2/63 | 052482 | ● | 63 | 1 |
FFC 2/75 | 052483 | ● | 75 | 1 |
FFC 2/82 | 052486 | ● | 82 | 1 |
FFC 2/90 | 052487 | ● | 90 | 1 |
FFC 2/110 | 052488 | ● | 110 | 1 |
FFC 2/125 | 052489 | ● | 125 | 1 |
FFC 2/160 | 052500 | ● | 160 | 1 |
FFC 2/200 | 052501 | ● | 200 | 1 |
TECHNICAL DATA
State | solid |
Odour | odourless |
Fire resistance | up to 4 hours |
Available sizes | > 30 mm and max up to 200 mm |
Significant expansion occurs at temperature | > 180 °C |
Storage temperature | N/a |
Shelf life | N/a month |
Colour | black inner component in outer foil carrier |
European Technical Assessment | ETA-20/1063 |
CE marking | 2531-CPR-CXO10320 |
