Coated Panel System FCPS

Don’t hesitate to contact us for more information about company or service

8856000000

Functioning

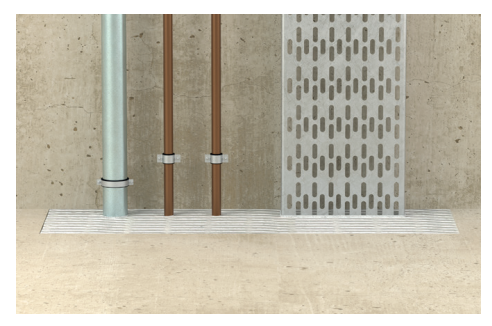

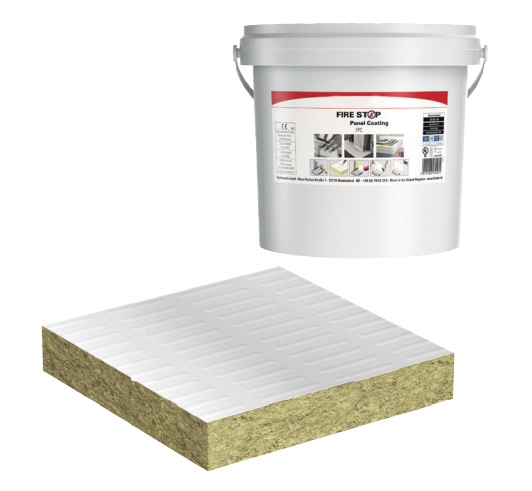

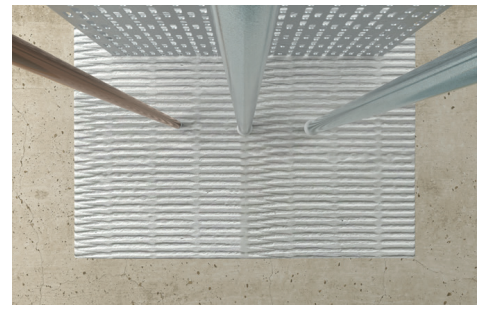

FCPS is a rock fibre core coated with ablative sealant FPC for use in both vertical and horizontal applications.

It maintains the sound reduction index of a structure.

The FCPS will allow additional services to be added or removed and will accommodate thermal and mechanical movement of services

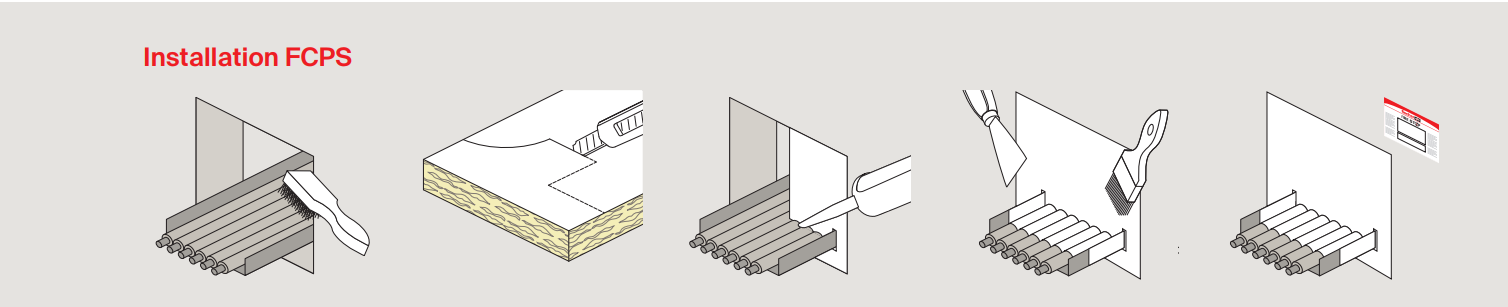

FPC can be used to adhere sections of FCPS board when jigsaw assembly is required and can also be used to enhances smoke and acoustic performance.

Density	140 kg/m³
Coating thickness	1 mm WTF
Fire resistance	depending on application
Accoustic performance	27 dB
Thermal conductivity	0,034 W/mK at 10 °C
Maximum size of seal	Wall 6,76 m², floor 1,65 m²
Maximum size unsupported	1.2 x 1.2 m
Density of panel coating FPC	1.25 – 1.375 g/cm³
Panel coating FPC coverage	ca. 1,6 kg/m² l/m²
Shelf life of panel coating FPC Art.-No. 53253	12 month
European Technical Assessment	ETA-20/1062, ETA-20/1067
CE marking	2531-CPR-CXO10319, 2531-CPR-CXO10329

Services	Rigid partition walls [Fire rating – hours]	Flexible partition walls [Fire rating – hours]	Concrete floors [Fire rating – hours]
Cable ladder/tray/basket	Up to 2	Up to 2	Up to 2
Cables up to 26 mm diameter	Up to 2	Up to 2	Up to 2
Cables up to 80 mm diameter	Up to 2	Up to 2	Up to 2
Steel/Copper pipes up to 159 mm diameter	Up to 2	Up to 2	n/a
*PVC pipes up to 110 mm diameter**	Up to 1	Up to 1	n/a
Blank seals	Up to 2	Up to 2	Up to 2

* PVC Pipes must be protected in conjunction wit h FiPW, which must be securely sealed in place wit hin the FCPS.
