Intumescent Acoustic Mastic FiAM
Flexible fire resistant acoustic mastic
Applications

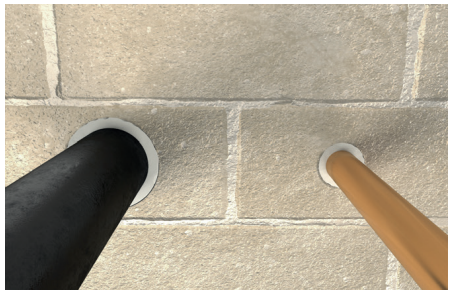

- Metallic pipes: 13“ (325 mm)
- Cable trays: 18“ x 2“ (450 x 50 mm)
- Cable bunches: 4“ (100 mm)

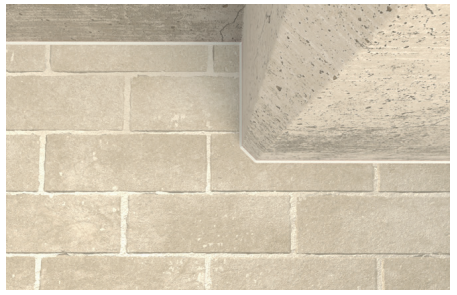

- Linear joints: flexible and rigid construction elements
- Joints between FCPS coated panel system
Advantages
- Water based
- Low VOC
- Movement capability ± 25 %
- Excellent acoustic properties
- Approved for infinite linear gap length
- Halogen and solvent free
- · Paintable and excellent slump characteristics
Get a Quote
Need more help?
8856000000
Building materials
How it works
Functioning
Intumescent Acoustic Mastic FiAM
|
Item no. |
Ap- pro- val ETA |
Languages on the cartridge |
Contents [ml] |
Adapted for |
Sales unit [pcs] |
|
|
Item |
||||||
|
FiAM 310 |
053011 |
● |
DE, FR, EN, IT |
310 |
– |
1 |
|
FiAM 310 |
538152 |
● |
DK, FI, SE, NO |
310 |
– |
1 |
|
FiAM 310 |
538150 |
● |
TR, PT, ES, NL |
310 |
– |
1 |
|
FiAM 310 |
538151 |
● |
PL, SK, CZ, HU |
310 |
– |
1 |
|
FiAM 600 |
056006 |
● |
– |
600 |
– |
1 |
|
KPM 2 Plus |
053117 |
– |
– |
– |
FiAM 310, FFRS 310, UFS 310, FiGM 310 |
1 |
|
Applicator gun 600 ml |
097967 |
– |
– |
– |
FIAM 600 ml |
1 |
Technical data
Base material | Water-based acrylic |
Relative gravity | approx. 1.6 g/cm³ |
Skin-forming time | approx. 10 min at 23 °C RH |
Curing rate | approx. 1.5 mm per 24 hours |
Storage temperature | + 5 °C to + 25 °C |
Movement capability | ±25 % |
Shelf life | 18 month |
pH Value | 8 – 9.5 |
Accoustic performance | 63 dB |
Yield per l/m | depending on application |
Colour | white (grey on request) |
European Technical Assessment | ETA-20/1064, ETA-20/1065 |
CE marking | 2531-CPR-CXO10321 |
Curing rate is dependent on substrate, air humidity and weather conditions.
Application data

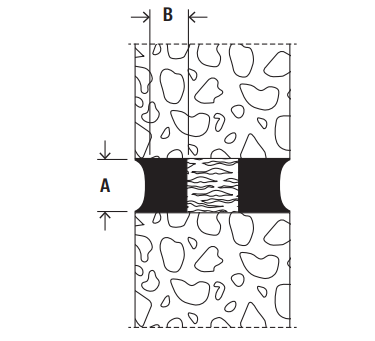

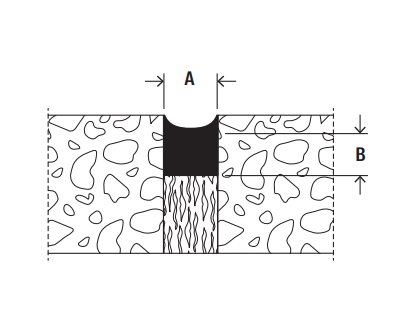

Joint width A [mm] | Joint depth B [mm] | ml per linear metres* |
|---|---|---|
60 | 5 | 300 |
50 | 5 | 250 |
30 | 5 | 150 |
15 | 5 | 75 |
5 | 5 | 25 |
*The consumption of the product depends on the application.
Substrate | Max. joint width [mm] | Fire ratings | |
Integrity rating [min] | Insulation rating [min] | ||
Concrete/masonry | 60 | 240 | 240 |
Concrete or masonry/steel | 60 | 240 | 60 |
Concrete or masonry/timber | 60 | 60 | 60 |
Concrete/masonry/head detail | 60 | 240 | 240 |
For detailed information please refer to listed system.
Service type size | Fire ratings | ||
Integrity rating [min] | Insulation rating [min] | ||
Copper/steel/metal pipes | 35 – 159 mm diameter | up to 240 | up to 240 |
Loaded cable try | 450 x 50 (tray) cables to 21 mm | up to 120 | up to 90 |
Single/bunched cables | 21 – 100 mm diameter cables | up to 120 | up to 120 |
